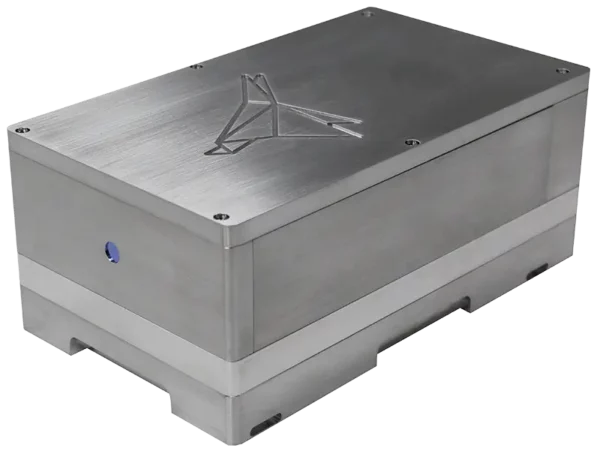

320 NX Single Frequency CW C-DPSS Laser

The Skylark 320 laser offers C-DPSS CW single frequency UV operation, delivering up to 200 mW output power, outstanding spectral properties, ultra-stable output, and extremely low noise from a compact footprint and a versatile software package — making it suitable for system integration and a wide range of demanding applications.

Categories: , Tags: , ,

Description

The Skylark 320 laser offers C-DPSS CW single frequency UV operation, delivering up to 200 mW output power, outstanding spectral properties, ultra-stable output, and extremely low noise from a compact footprint and a versatile software package — making it suitable for system integration and a wide range of demanding applications.

Key Specifications 320 nm

Wavelength 320 nm
Output power (fixed value within range) up to 200 mW
Spectral bandwidth ≤ 0.5 MHz
Spatial mode TEM00
Operational mode CW, SLM

Specifications

Key Specifications 320 nm

Wavelength 320 nm
Output power (fixed value within range) up to 200 mW
Spectral bandwidth ≤ 0.5 MHz
Spatial mode TEM00
Operational mode CW, SLM

Laser Performance

Spectral stability (over 8 hours) ± 0.2 pm
Output power stability (over 8 hours) ≤ 2.0 % Peak to Peak
Output power noise (10 Hz – 10 MHz) ≤ 0.1 % RMS
Warm up time 5 – 30 mins
Power consumption <200 W

Beam Characteristics

Beam height 65 mm
Beam diameter at output aperture 0.6 – 1.2 mm
Beam divergence 1.0 mrad, diffraction limited
Beam pointing stability ≤ 5 µrad/°C
Coherence length > 100m
Polarisation ratio ≥ 100:1, vertical

Laser System Dimensions

Laser head L x W 240 x 150 mm
Controller L x W x H 238 x 170 x 54 mm

Environmental Conditions

Ambient temperature range 18 – 30 °C
Laser interface stability ± 1.5 °C
Storage 0 – 50 °C
Humidity 5 – 95 %, non-condensing
