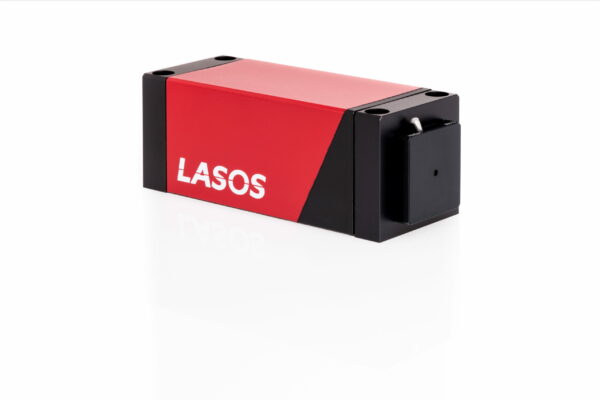

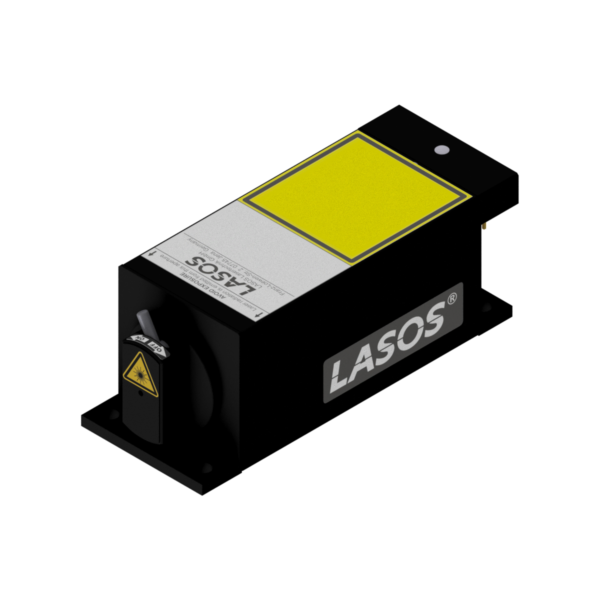

DPSSL Series Diode Pumped Solid State Laser
The LASOS® DPSS laser series is the best choice when reliability and long lifetime matters. The special optical design and an intelligent power and temperature control guarantee.
Description
The LASOS® DPSS laser series is the best choice when reliability and long lifetime matters. The special optical design and an intelligent power and temperature control guarantee.
These characteristics are ideal for a variety of applications as in DNA sequency, flow cytometry, digital imaging, analytical chemistry, fastflow-rate particle measurements or confocal microscopy. Since all laser models emit only a single longitudinal mode they are also an ideal choice for application in Raman- spectroscopy. Housed in compact and robust packages, these lasers are the perfect choice for design in and integration into OEM instrumentation and systems and also for end user applications in research and development. The lasers will be provided as selfcontained laser modules, as OEM-component modules or as fully integratable subsystems, with a compact controller as OEM or stand alone version with computer interfacing.

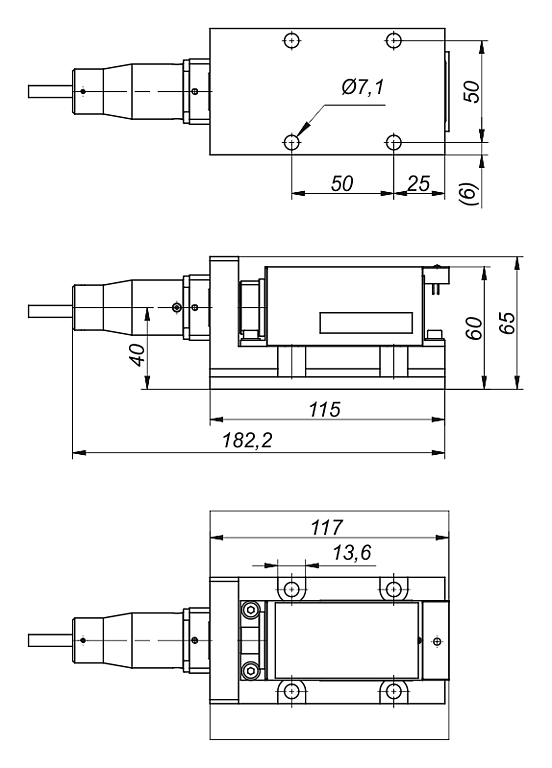

Customized solutions for specific applications are possible. All laser models can be provided with a polarization maintaining, adjustment free fiber coupling.

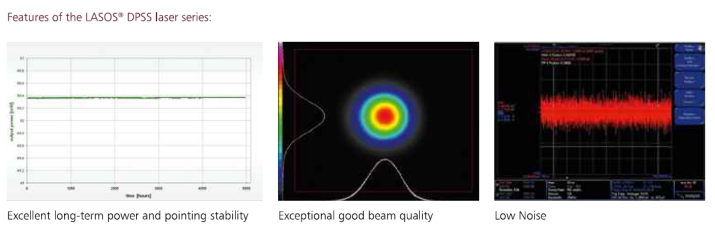

- Single frequency operation
- Excellent long term stabilit
- Exceptional good beam quality
- Low noise
Fields of Application
- Microscopy
- DNA Sequencing
- Holography
- Flow Cytometry
Specifications
| Wavelength [nm] | Max. output power free beam [mW] | Max. output power fiber coupled [mW] | RMS Noise (30 Hz – 10 MHz) [%] | Line width [MHz] |
|---|---|---|---|---|
| 473 | 100 | 80 | < 0.5 | < 1 |
| 532 | 250 | 240 | < 0.5 | < 1 |
| 543 | 20 | 16 | < 0.5 | < 1 |
| 552 | 20 | 16 | < 0.5 | < 1 |
| 556 | 20 | 16 | < 0.5 | < 1 |
| 561 | 150 | 120 | < 0.5 | |
| 594 | 20 | 16 | < 0.5 | |
| 607 | 50 | 40 | < 2 | < 1 |
| 640 | 200 | 160 | < 2 | < 1 |
| 640 | 500 | 400 | < 1.5 |
