LIGHTmetric ONE Meter
LIGHTmetric ONE spectral Lux Meter
The LIGHTmetric ONE was developed together with filmmakers and photographers – to meet the demands of the industry. High-quality work requires high-quality equipment when it comes to spectral measurement of light.
Description
SMART Solution
Compact and handy -easy to use.

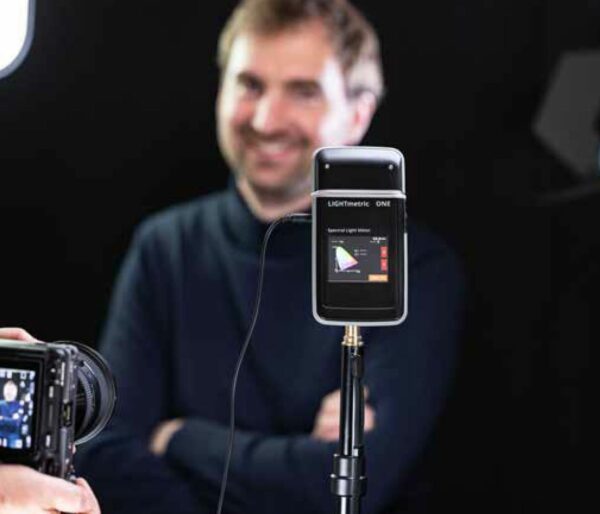

The LIGHTmetric ONE is the smart companion on set. Ready for use at any time and always precise.
BEST Purpose
Users from the film and television industry were actively involved in the development of the device.
This ensures that the device is optimally adapted to the particular needs of individual users.
High QUALITY, attractive DESIGN and COST-EFFICIENT
The attractive price of the measuring device belies the high-quality design of the light measurement technology.
Connectivity

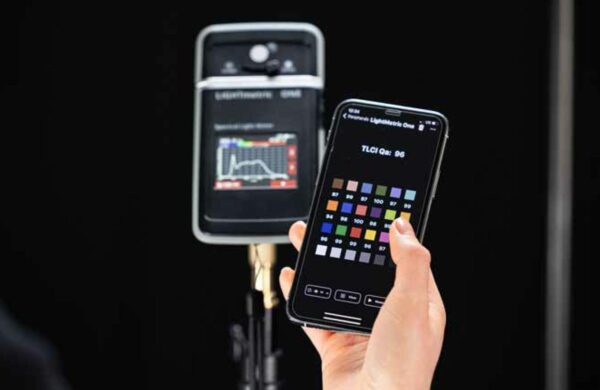

Compact, handy and intuitive to use! The LIGHTmetric ONE is the smart companion on set. Using the iOS and Android app (Bluetooth), remote control and data handling is child’s play.
Sophisticated design at an attractive price
When developing the LIGHTmetric ONE, the focus was on functionality, perfection and an attractive price. We also pass these attributes on to our customers. Our ISO 17025 traceable calibrations testify to our striving to always offer you the best possible measurement technology.
All necessary measurements and evaluations
The device has all the necessary measurement variables (CCT, Lux, spectrum, CRI, …) as well as other evaluations such as SSI (Spectral Similarity Index), Lee filter calculation for color shifts (CCT), etc.
Features ideal for architects, lighting designers and installers

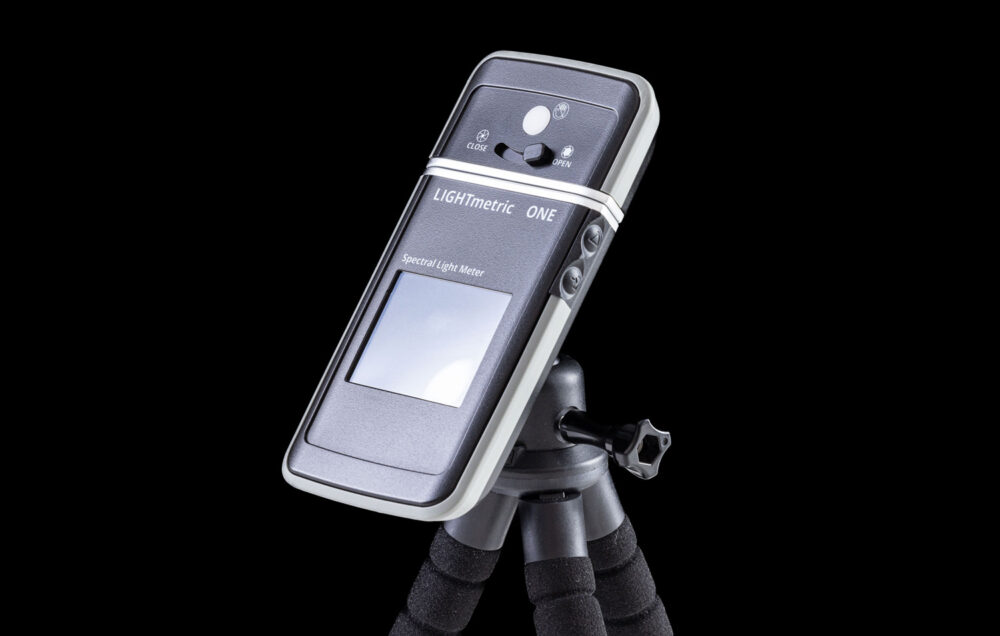

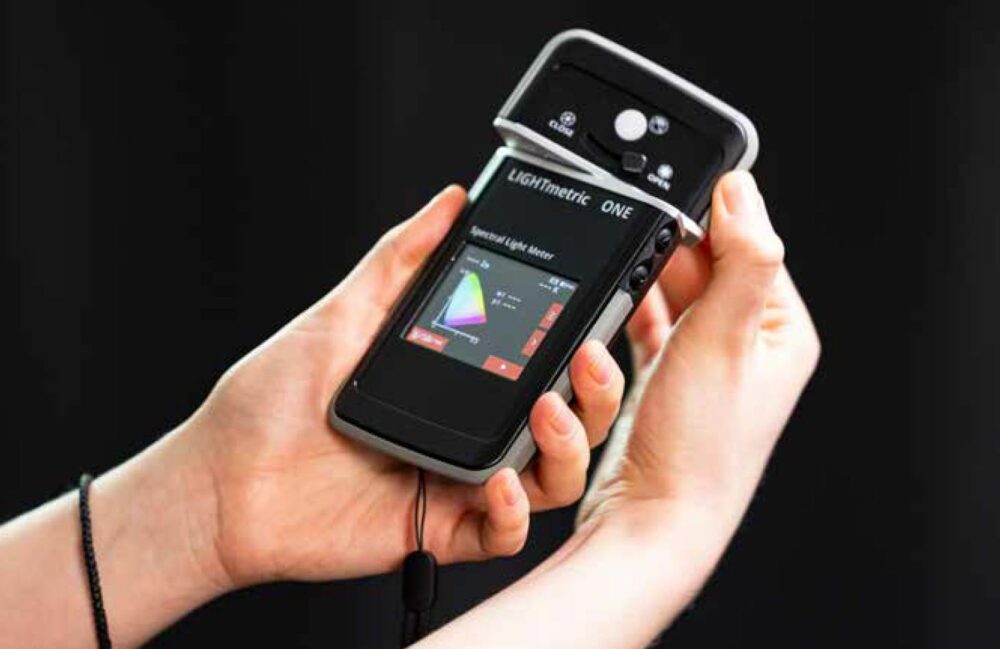

The LIGHTmetric One also impresses with many functions ideal for architects, lighting designers and technicians, and many more. The features such as the rotatable measuring head and tripod mount are just as advantageous as the versatile control via app. Human centric lighting evaluations, as required by the WELL Building standard for example, are supported by the direct display of melanopic equivalent daylight illuminance.
Measurement of artificial plant lighting
Thanks to its extensive evaluation functions for PAR and other special functions, the LIGHTmetric One is also ideal for evaluating artificial plant lighting.
Specifications
Specifications
Wavelength Range (360 – 830) nm
Measuring Range (1 – 350000) lx
Optical Bandwidth 10 nm with CIE 214 Correction
Entrance Optics 10 mm diameter cosine diffuser
App Compatible for Android and iOS
Usability intuitive measuring device with touchscreen or via app
more Features Rotatable sensor head, Tripod mount, Flash-Sync
x, y Reproducibility ± 0,0002
Δx, Δy Uncertainty ± 0,002 (standard illuminant A)
CCT-Measuring Range (1700 – 17000) K
ΔCCT ± 50 K (standard illuminant A)
Interface USB 2.0, Bluetooth
Temperature Range Operation +10° C to +30° C
Charging Device via + 5 V USB
Battery Life At least 8 hours of operation
Dimensions 136 mm x 74 mm x 32 mm
