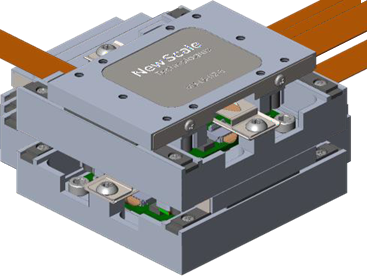

M3-LS-U2-8
- Smart Stage: Embedded controller, no separate electronics
- Operate directly using I2C or SPI ASCII commands -or-
- Evaluate with Pathway™ PC Software and USB adapter
- Cost-effective, long-life: For high-volume production
- Small size: 32 x 32 x 10 mm
- High resolution: 5 mm with absolute encoding
- High speed: 35 mm/s
- Long stroke: 8 mm
- Power: 5 V DC input, ~ 3.2 W peak when moving
- High repeatability (± 2 mm typical)
Description
Precision, stability and ease of use for high volume product applications
The M3-LS-U2 Linear Smart Stage is a direct-drive, high- precision micro stage built for fast, simple integration into miniature OEM systems. All drive and control functions are embedded into the compact stage assembly – no external electronics are needed!
The stage drive is a UTAF2 piezo motor combined with a 0.5
mm resolution sensor for precise, repeatable positioning of optics, probes, sensors and more. The piezo motor operates at 5 VDC. No high voltage boost is needed. Absolute encoding removes the need to home the stage on power-up, eliminating errors and disruptions in processes and experiments.
At 35 mm/sec it is 7x faster than other M3 Smart Stages.

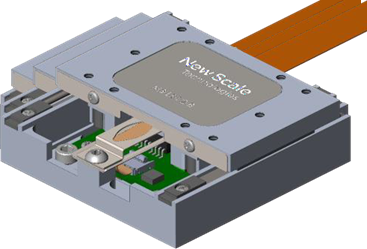

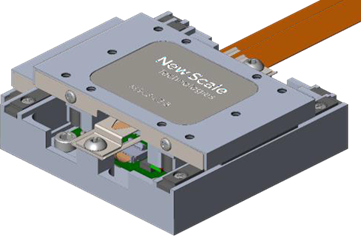

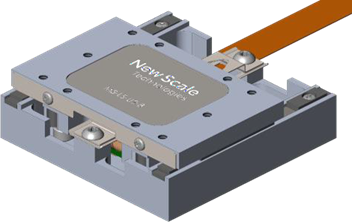

The anodized aluminum stage uses linear ball bearing races with very low uniform friction. The bearings directly support the motor preload which creates a stable, precise and zero clearance guide system. The base is the maximum footprint required for installation in your product because the carriage moves within the total length of the base.
This smart stage is designed for long life and is ideal for embedding precision motion into high-volume products.
APPLICATIONS
- DNA sequencing instruments
- Point-of-care diagnostic systems
- Portable spectroscopy instruments
- Biomedical probing & sampling
- Laser beam steering
- Miniature camera systems
- And much more
Specifications
| M3-LS-U2-8 Linear Smart Stage Specifications | |
| MODEL | M3-LS-U2-8 |
| Stroke | 8 mm |
| Dimensions | 32 x 32 x 10 mm including controller |
| Mass of Smart Stage (Note 1) | 15 grams including controller |
| Payload mass (vertical) (Notes 2, 3) | ≤ 5 grams recommended |
| Payload mass (Sideways and horizontal) (Notes 2, 3) | ≤ 20 grams recommended |
| Holding Force | ≥ 0.3 N |
| Force (bidirectional) | ≥ 0.1 N |
| Speed | 35 mm/sec |
| Duty cycle (Note 4) | 50% max recommended |
| Closed-loop performance | |
| Resolution | 0.5 mm with absolute encoding |
| Bi-directional repeatability | ± 5 mm |
| Accuracy | ± 10 mm |
| Input Quiescent Power | ~ 0.35 W |
| Input Power (peak) | ~ 3.2 W |
| Input Voltage | 5 V DC (4.75 V to 5.5 V) |
| Mechanical stage | |
| Static parallelism | < 30 mm |
| Runout | < 10 mm |

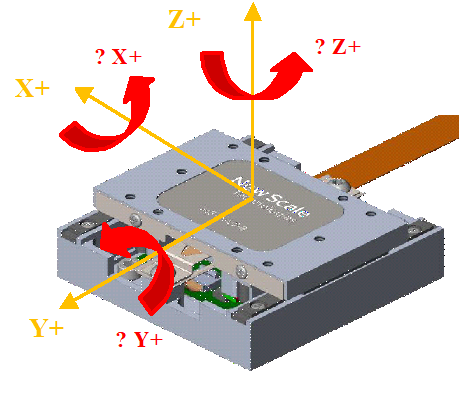

| Pitch, yaw, and roll | < 1 mrad |
| Absolute maximum loads | See chart on page 3 |
| Environment | |
| Relative humidity | < 70% |
| Operating temperature (Note 5) | -30 °C to +70 °C |
| Storage temperature | -40 °C to +80 °C |
| Lifetime (Note 6) | 50 km |
| Compliance | RoHS; CE pending |
| Drive electronics | Integrated into the smart stage |
| Control interface | Directly via I2C or SPI interface. Indirectly via USB adapter to PC. |
| Standard Cable Length | 100 mm (90 mm to edge of stage) |
| Maximum Cable Length | 600 mm, > 250 mm requires reduced clock rate |
