Sunscreen Analyzer SPF-290AS

SPF-290AS Sunscreen Protection Factor Analyzer to meet the latest ISO24443 requirements. Works on 120 VAC, 60 Hz, single-phase AC power. (220 VAC, 50 Hz, single-phase version available optionally at no extra cost – please specify at order). Kit includes:
• All-in-one Touch screen Computer
• Software
• Validation Kit
• Packing & Handling

Category: Solar Light Tag: SPG-290AS

Description

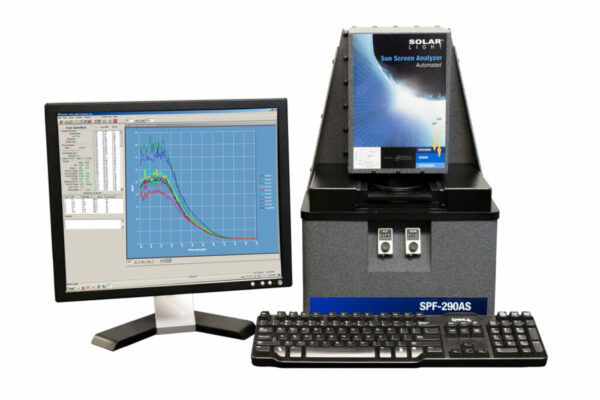

Model SPF-290AS: The SPF-290AS Sunscreen Protection Factor Analyzer is delivered as an integrated turnkey system packaged in a self-contained, attractive desktop unit. The SPF-290AS Computer includes a CPU, keyboard, monitor, mouse, Windows® operating system, data acquisition board, drivers, I/O, communication and power cables, WinSPF operating software, and complete instruction manual.
WinSPF operating software is installed and tested, and includes complete on-line help system, audio- visual training aid, COLIPA spreadsheet, fully functional toolbar, single step control icons, graphical and tabular data display formats.

To begin immediate testing at system delivery, a 50 x 50 mm PMMA plate holder, along with a sample set of three 5μ roughness PMMA plates and a box of 25 syringes for sample application are also provided. P2 and S2 standard sunscreens are also supplied for testing ISO 24443, FDA, and much more.

The SPF-290AS is the choice for hundreds of the world’s leading companies including Avon, BASF, Clairol, Elizabeth Arden, Estee Lauder, Good Housekeeping, ISP, Johnson & Johnson, Lever Bros, L’Oreal, Mary Kay, Merck, Revlon, Rohm & Haas, Proctor & Gamble, Unilever, Andrew Jergens, Helene Curtis, Whitehall Robins, Bayer, S.C. Johnson, Bristol-Myers Squibb, Tanning Research, Pfizer, Boots the Chemist, UK Ltd., Amway and many others!

Specifications

SPF-290AS Performance Specifications

Wavelength Range	290 – 400 nm (Range Specified by International Standards)
Wavelength Accuracy	0.2% (0.58 nm – 0.80 nm)
Wavelength Reproducibility	0.25 nm
Spectral Bandwidth (FWHM)	1.66 nm
Wavelength Step Interval	1 nm, 2 nm, or 5 nm (User Selectable)
Absorbance Range	0 – 3.2 A (Dual Doped PMMA Method)
SPF Measurement Range	1 – 100+
UPF Measurement Range	1 – 100+
Scan Time	As Little As 24 Seconds
Wavelength Step Interval	1 nm, 2 nm, or 5 nm (User Selectable)
Lamp	Newly designed Power Stabilized Xenon 175W
Detector	High Sensitivity Multialkali side-on PMT
Sample Positioning	Automated X-Y Stage (12 discrete sample positions)
Power Options	110V AC, 60 Hz or 220V AC, 50 Hz
